Overview
In an event a FUYL Smart Locker's digital controls are inaccessible (e.g. power outage), access to individual bays is possible using the manual override PIN or lever.
Identifying your FUYL product
Before beginning, it's important to accurately identify which FUYL Smart Locker requires manual override.
Manual bay access on a FUYL Tower or FUYL Tower Pro (MK2 & MK3)
- Use the provided security key to unlock and open the side access door of the FUYL Tower.

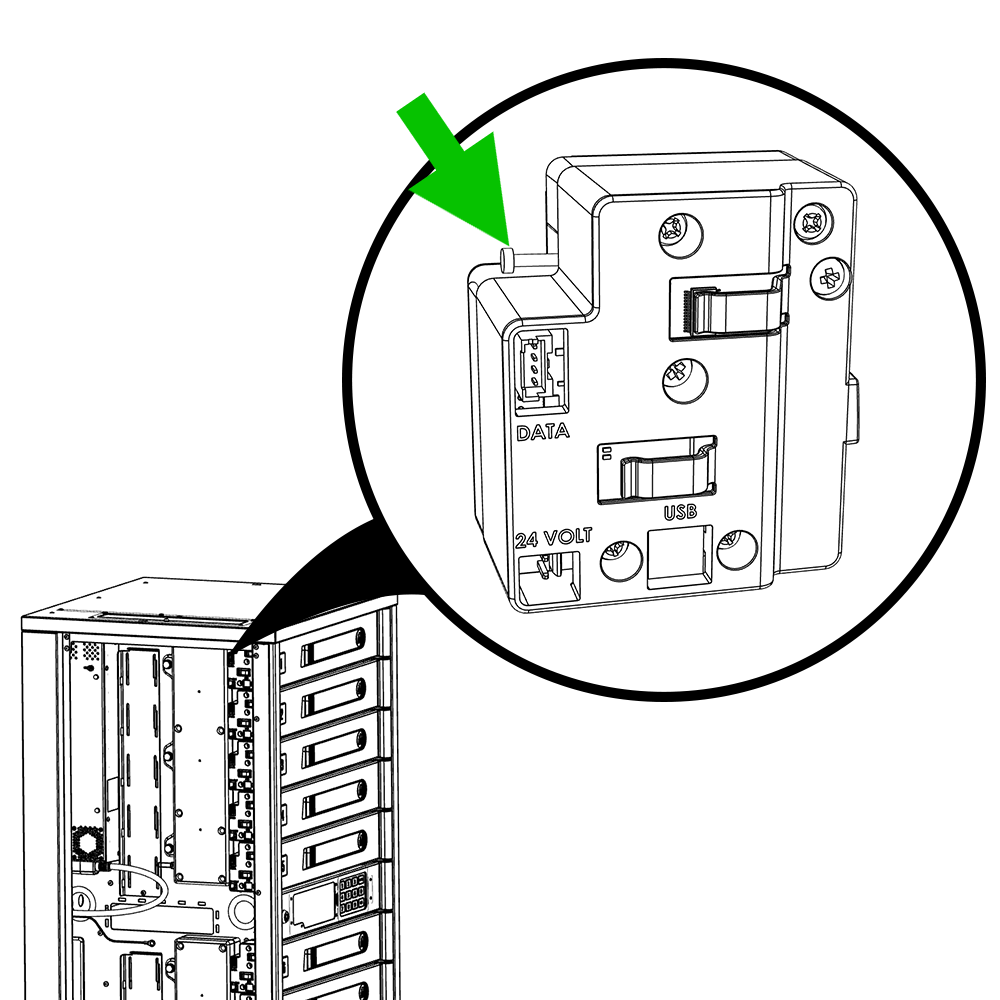

- Each bay has a corresponding lock module with a manual release pin (illustrated below)
- Depress this pin (towards the base of the FUYL Tower) and the bay in question will open.
Note: This bay (if the Tower is online) will register a "Breach" event and may become inaccessible to users. To regain functionality, an administrator can "Toggle bay offline" in the admin menu, or from the PC Locs cloud.
Manual bay access on a FUYL Tower (MK1)

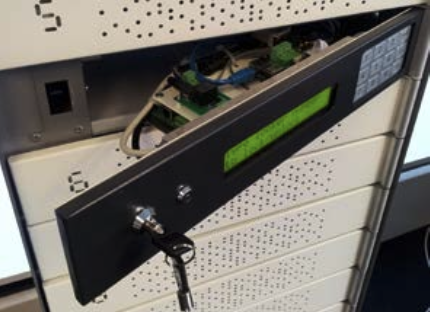

- Use the provided security key to open both the control and bottom doors of the FUYL Tower:

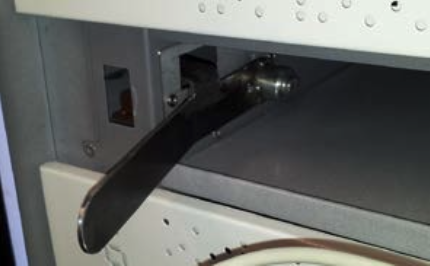

- Retrieve the manual release lever attached to the bottom door itself, and insert it into the release mechanism behind the control door as shown:
- Firmly lift the lever upwards to release all doors, then down again to reset the release latch.
- Finally, remove and replace the lever in the bottom door for safekeeping.
