While most configuration of a FUYL™ locker is performed from the FUYL Portal, there are limited options available through the locker's Admin Menu.
Accessing the locker Admin Menu

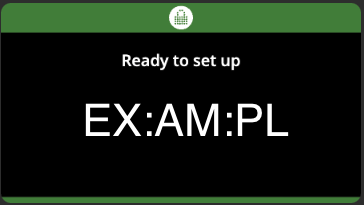

On firmware versions 2.12 and higher, you may not be prompted for a bay number when first started or immediately after a factory reset, and instead will see the following:
The locker Admin Menu can be accessed by entering “00” then pressing OK. When prompted, enter a PIN associated with an Owner, Admin or Station Admin. If you have not yet connected your locker to the FUYL Portal, the default access PIN is: 31082018. If you have connected your locker and no longer have access to a working PIN, contact support.
Admin Menu Options
Bay Access
- Unlock bay: Unlocks and opens a bay
- Clear bay: Clears a bay reservation
- Toggle offline: Toggles a bay offline if online or online if offline (no LED)
- Unlock all bays: Unlocks and opens all bays
Test Read RFID
Test RFID cards using the locker's RFID reader. This can be useful when registering only a few RFID users or when discovering how the FUYL locker reads your RFID card.
After selecting this option, you will be prompted to scan an RFID card. The card’s details will be shown on the screen. The HEX or DEC values displayed on the LCD panel can be used directly, or as a formatting guide when importing users in bulk.
System status
- Network status: Displays the Ethernet and Wi-Fi IPs, MACs & the Portal address of the locker
- Network config: Displays the network configuration (Static vs DHCP etc)
- System clock: Displays the system time and timezone
- Software version: Displays the firmware revision
Locker restart
Restarts/Reboots the locker.
Address locks
This function resets and reconnects the lock control of each bay. This should only be performed at the request of a PCLocs representative.
Factory reset
This function resets the locker to its factory defaults.
If the locker is currently registered to a FUYL Portal account, it will re-onboard itself once connected. Should you not wish this to happen, perform the factory reset using the Forget Station button on a locker's settings tab in the FUYL Portal instead. Forget station will factory reset the locker and disassociate the locker from the FUYL Portal account.
Note: In rare circumstances, if a locker is factory reset while still enrolled in the FUYL Portal, it may start up in an unexpected state (with a white logo on screen and blue bay LEDs). Should this occur, press "00" then "OK", followed by an Admin PIN, then select "Standalone mode". Alternatively, contact support for a remote resolution.
Admin Credential (only available for offline locker)
This option is used to change admin credentials on locker's not yet onboarded to the FUYL Portal.
- Admin access PIN: Allows setting of a new, 8 digit PIN (to replace existing or default PIN)
- Admin access RFID Allows setting of a new RFID access code (You will need a compatible RFID card to set)
